Electronic UHF RFID Windshield Tag Tamper Resistant For Access Control Vehicle

Product Categories
Shenzhen Suoma Tech Co., Ltd
Contact Now

Electronic UHF RFID Windshield Tag Tamper Resistant For Access Control Vehicle

Brand Name : SUOMA

Model Number : windshield stickers

Certification : CE,RoHS

Place of Origin : China

MOQ : 100

Price : $0.12/pcs-$0.18/pcs

Packaging Details : 2500pcs/roll

Material : PVC , PET, PETG, Paper

Frequency : 860-960Mhz

Reading distance : 1-6meter

Protocol : ISO18000-6C & Gen2

Size : 140*6,96*23,98*6,73*12,25*25,48*14,73*21,98*12

Printing : Offset Printing,barcode,serial No.

Product Keywords : rfid windshield stickers,rfid windshield lable,rfid windshield label

Contact Now

Product descriptions from the supplier

Electronic UHF RFID Windshield Tag Tamper Resistant For Access Control Vehicle
Overview
Electronic UHF RFID Windshield Tag Tamper Resistant For Access Control Vehicle
RFID Tag Windshield Label Tag 1~10m Long Range UHF RFID NFC/UHF Windshield Tags For Car Parking System
Inlay is a special term for RFID industry, which refers to a pre laminated product composed of multi-layer PVC or other materials containing chips and coils. After different forms of packaging, different kinds of RFID tags can be made. Inlay can be understood as semi-finished products without encapsulation of RFID tags. RFID inlay can be divided into dry inlay and wet inlay. RFID Dry inlay does not contain back glue, and its structure is antenna + chip + chip package; RFID Wet inlay contains back glue, which can be directly attached to objects. The structure is antenna + chip + chip package + PET + Glue+ Release paper Frequency requirements: 869-915mhz-uhf / 13.56mhz-iso14443 / 13.56mhz-iso 15693. MIND has technicians and offer antenna design sevice to meet various customer requirements.
Product Description
Electronic UHF RFID Windshield Tag Tamper Resistant For Access Control Vehicle

Electronic UHF RFID Windshield Tag Tamper Resistant For Access Control Vehicle
Chip
H9,M4Q4T,MR6
Frequency
860～960MHz
Material
Coated Paper/ PET/Synthetic paper/Thermal paper/customization
Working Mode
Passive
IC Life
100,000 Programming cycles, 10years data retention
Operating temperature/humidity
-25~50℃/20%~80% RH
Storage temperature/humidity
+23°C±5°C/ 50%±10% RH(Without condensation).
Antenna
Aluminum Etching, 93*19mm

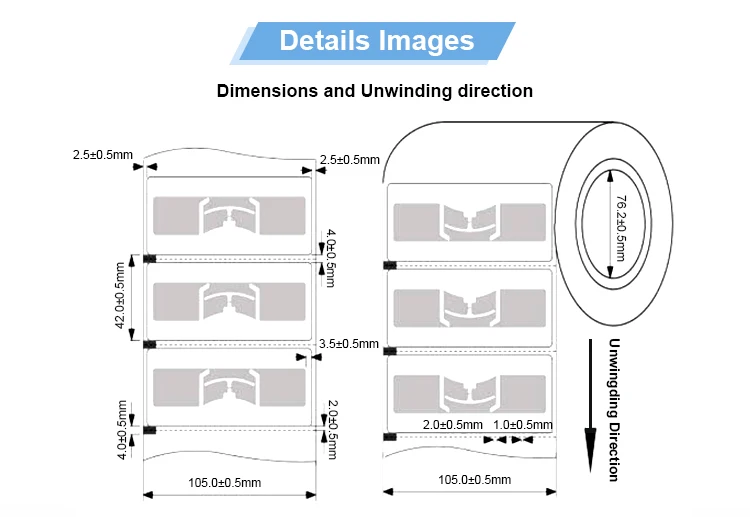

Wet inlay/Label Size
100*38mm or customization
Printing
Full Color Printing, Logo, Barcode, QR code, etc
Sample
Sample is free for your quality test
Protocol
ISO/IEC 18000-6C EPC Class1 Gen2
Packaging
1000-5000pcs/roll, 4 rolls /carton
Place of origin
SHENZHEN,china
Application/Solution
Secure Admission Control/Cashless Payment Membership and loyalty programs
Event Access and Branding/Social Media/Retail
Environment/Games & Toys Location/Electronics/Trade Shows
Events/Call request/Business Cards
What are the Dry Inlay/ Wet Inlay/ Labels?

RFID Dry Inlay
Inlay is a special term for RFID industry, which refers to a pre laminated product composed of multi-layer PVC or other materials containing chips and coils. After different forms of packaging, different kinds of RFID tags can be made. Inlay can be understood as semi-finished products without encapsulation of RFID tags. RFID Dry inlay does not contain back glue, and its structure is antenna + chip + chip package; Frequency requirements: 860-960MHz-uhf / 13.56MHz-iso14443 / 13.56MHz-iso15693. MIND has technicians and offer antenna design service to meet various customer requirements.
RFID RFID Wet Inlay
RFID Wet inlay contains back glue, which can be directly attached to objects. The structure is antenna + chip + chip package + glue + release paper, if no logo print, customer can use the rfid wet inlay directly without make it as white/ printed label for cost saving. Frequency requirements: 860-960MHz-uhf / 13.56MHz-iso14443 / 13.56MHz-iso15693.
MIND has technicians and offer antenna design service to meet various customer requirements.
RFID Label
RFID white label, RFID sticker contains both back glue and top coated paper or PET, the structure is Coated paper/PET+antenna + chip + chip package + glue + release paper. RFID label packaging can be divided into fold, roll and single product. Products can be divided into thermal printing and heat transfer printing; materials can be paper, waterproof materials and PVC or PET for choice, size diversity for customers to choose, encryption processing, personalized and coding services, thermal printing full
package; frequency requirements: 860-960MHz-uhf / 13.56MHz-iso14443 / 13.56MHz-iso15693.
More details or any question can contact Kerry directly.
Electronic UHF RFID Windshield Tag Tamper Resistant For Access Control Vehicle
Our Advantage:
Antenna: Made by laser cutting, with straight antenna lines, stable performance, environmental protection, no environmental pollution caused by traditional etching processes. 2.OEM: label design & selection, antenna design and manufacturing 3.Excellent R & D team, complete R & D equipment system 4.Voyantic Tagformance: 100% tags performance testing, control the sensitivity distribution within +/- 0.5 dBm
Packaging&Shipping
Electronic UHF RFID Windshield Tag Tamper Resistant For Access Control Vehicle
Carton size:
Quantity
Carton Size
Weight(KG)
volume(cbm)
1000
27*23.5*13.5cm
6.5
0.009
2000
32.5*21*21.5cm
13
0.015
3000
51*21.5*19.8cm
19.5
0.02
5000
48*21.5*30cm
33
0.03
FAQ
Q: 1. Why us? A: Excellent R & D team—quick to solve problems, creative to design new items, latest RFID items are from us. Big capacity—cost-effective and flexible to adjust production for volume and urgent orders. Strict QC factory—Voyantic Tagformance: 100% tags performance testing, control the sensitivity distribution within +/- 0.5 dBm Q: 2. Can I get Free Samples? A: The free sample will be offered all the time. But if you want customized samples,it would be charged. Q: 3. How long can I expect to get the sample? A: 3-5 working days. Q: 4. What about the lead time for mass production? A: 4-7 working days in regular,1-2 weeks for the busy season. Q: 5. OEM & ODM available? A: We offer label design & selection, antenna design and manufacturing. Q: 6. What are your terms of delivery? A: EXW, FOB, CIF and the bases of the other on your requestion.
